ST Infrared Temperature Sensor TMOS STHS34PF80
STHS34PF80 is the first of a family Presence/Motion detectionby absolute temperature from embedded IR technology.The infrared radiation sensing wavelength range is 5um to 20um, which is very suitable for the collection of human peak radiation of 9.8um, providing the best solution for smart home.

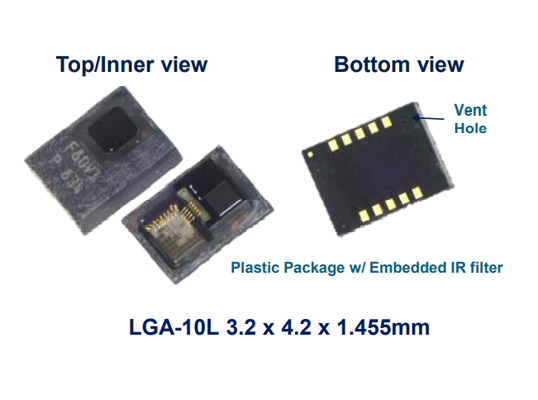

Package
Features
Supply voltage: 1.7V to 3.6V
Supply current: 10uA @ 1Hz
Power down current : 0.5uA
Digital I2C / 3-wires SPI interface
Movement detection up to 5 meter
Accuracy (Tamb) ±0.5°C typ@-10~60℃
Resolution ±0.035°C
Operating wavelength 5um to 20um
80deg Full Field of View (FOV)
Applications
Home automation
Intelligent lighting
Temperature monitoring
Smart home Internet of things
Ordering Info
| Part# |
Manufacturer |
Package |
Temperature Range |
|
| STHS34PF80 |
STMicroelectronics |
LGA-10L |
-10℃~+60℃ |
order |
| ☆ |
Product ordering：Mr. Zhang Email：zhangjf@icchain.com |
