Shanghai Sirui Technology Co., Ltd (QST) is committed to delivering intelligent, integrated, economical sensor solutions, and with a broad sensor and solutions product line.

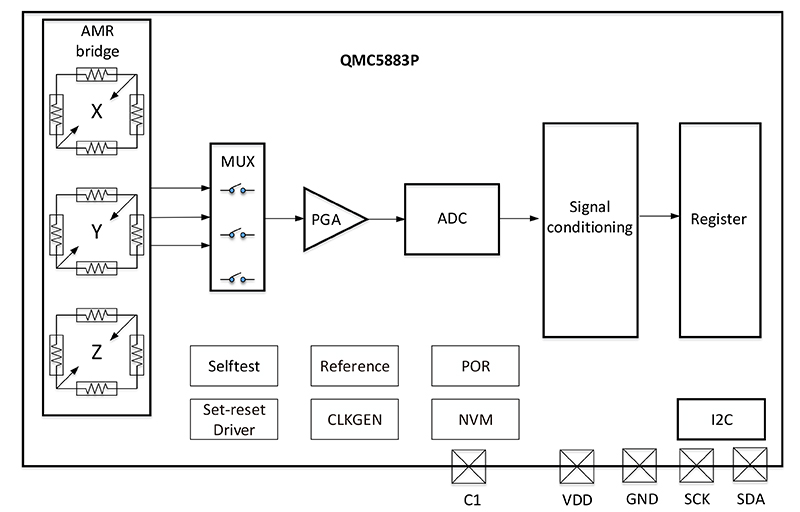

The QMC5883P is a three-axis magnetic sensor, which integrates magnetic sensors and signal condition ASIC into one silicon chip. This Land Grid Array package (LGA) is targeted for applications such as e-compass, map rotation, gaming and personal navigation in mobile and wearable devices.

The QMC5883P is based on state-of-the-art, high resolution, magneto-resistive technology. Along with the custom-designed 16-bit ADC ASIC, it offers the advantages of low noise, high accuracy, low power consumption, offset cancellation and temperature compensations. QMC5883P enables 1° to 2° compass heading accuracy. The I²C serial bus allows for easy interface.

The QMC5883P is in a 3.0x3.0x0.9 mm³ surface mount 16-pin LGA package.
